The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-98/2560 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a forward seal disc (98FSD) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.
The K680R-PS is a Plugged/Smoke motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.
This RMS motor reload utilizes RCSs exclusive Redline™ aerospace grade composite propellant formulation, which produces a visible scarlet flame. Redline™ motors burning rate lies midway between that of White Lightning™ and Blue Thunder™. Photos don’t do justice to the “laser-beam” intensity and color of Redline™…. you have to see it to appreciate it!
The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 2 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 2 certification is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
-

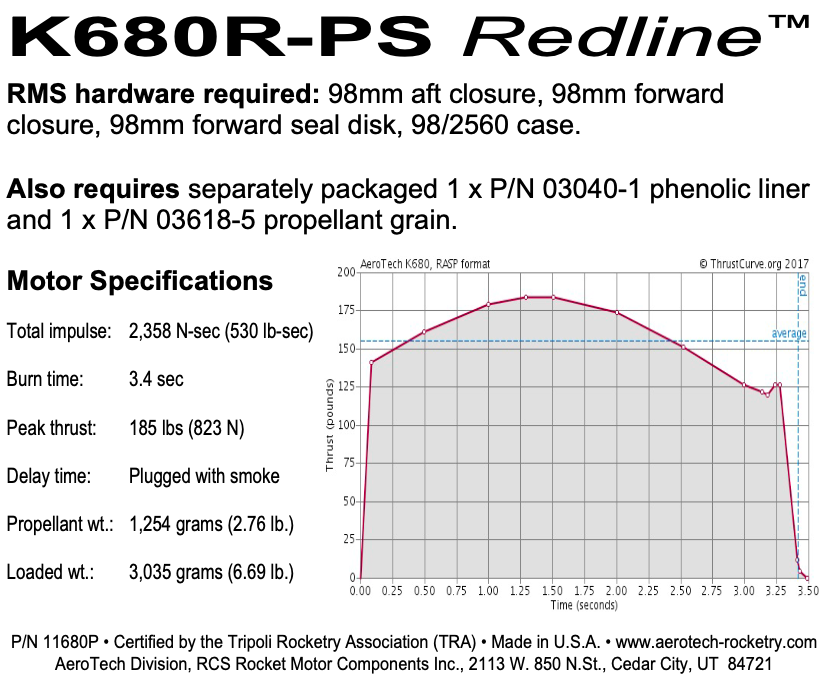

Specifications:
Motor Diameter: 3.875 inches (98mm)
Casing Length: 10.82 inches (275mm)
Hardware Required: RMS-98/2560
Total Impulse: 2358 N-sec
Average Thrust: 680 newtons
Peak Thrust: 835 N-sec
Thrust Duration: 3.5 seconds
Delay Time: Plugged
Propellant Weight: 1316 grams
Motor Weight: 3035 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
